n8n 채팅 로봇에서 Flowise 다중 지능체 채팅 스트림을 가져오고 브랜드 맞춤화

• •대상 API의 인증 정보가 필요할 수 있음

{
  "id": "IlTvU5j9eLTYb06I",
  "meta": {
    "instanceId": "a4bfc93e975ca233ac45ed7c9227d84cf5a2329310525917adaf3312e10d5462",
    "templateCredsSetupCompleted": true
  },
  "name": "Import Flowise Multi-Agent Chatflows in n8n Chatbot and Branded it",
  "tags": [],
  "nodes": [
    {
      "id": "4eebb2dd-0879-4ee3-aa07-f5bc180f3afd",
      "name": "채팅 메시지 수신 시",
      "type": "@n8n/n8n-nodes-langchain.chatTrigger",
      "position": [
        -720,
        0
      ],
      "webhookId": "8465c3be-42ca-4489-8dde-815812206e61",
      "parameters": {
        "mode": "webhook",
        "public": true,
        "options": {
          "allowedOrigins": "*"
        }
      },
      "typeVersion": 1.1
    },
    {
      "id": "cdd4781a-fb3a-492d-80a4-d75841dd458c",
      "name": "필드 편집",
      "type": "n8n-nodes-base.set",
      "position": [
        -280,
        0
      ],
      "parameters": {
        "options": {},
        "assignments": {
          "assignments": [
            {
              "id": "6a50a699-9598-452a-bc38-a87e2be9084c",
              "name": "output",
              "type": "string",
              "value": "={{ $json.text }}"
            }
          ]
        }
      },
      "typeVersion": 3.4
    },
    {
      "id": "f63fd39c-014b-428d-81a5-f7a675dbfeac",
      "name": "스티커 노트",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        20,
        -960
      ],
      "parameters": {
        "color": 6,
        "width": 800,
        "height": 220,
        "content": "### Enable n8n CDN on your website\n<link href=\"https://cdn.jsdelivr.net/npm/@n8n/chat/dist/style.css\" rel=\"stylesheet\" />\n<script type=\"module\">\n\timport { createChat } from 'https://cdn.jsdelivr.net/npm/@n8n/chat/dist/chat.bundle.es.js';\n\n\tcreateChat({\n\t\twebhookUrl: 'YOUR_PRODUCTION_WEBHOOK_URL'\n\t});\n</script>"
      },
      "typeVersion": 1
    },
    {
      "id": "209a551f-cb0e-42ae-a53d-78a1e2d96640",
      "name": "스티커 노트1",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -740,
        -960
      ],
      "parameters": {
        "color": 3,
        "width": 720,
        "height": 780,

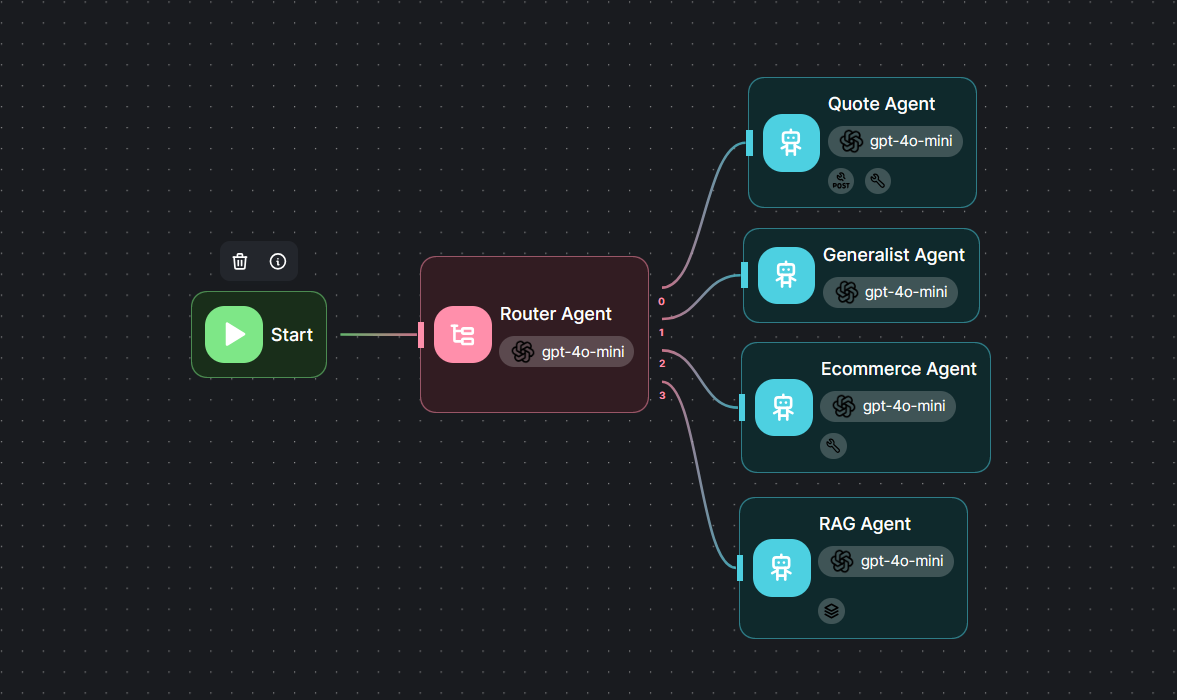

        "content": "## Flowise\n\nFlowise is an open-source, low-code/no-code platform designed to simplify the creation of AI agents and applications powered by large language models (LLMs). It offers a visual interface that allows users to build complex AI workflows without extensive programming knowledge.\n\nFlowise supports integration with various LLM frameworks and tools, making it a versatile choice for building AI-driven applications across different domains.\n\n### Basic Flowise Multi-Agent Chatflows:\n![image](https://i.postimg.cc/ydPSYcMD/flowise.png)\n\nSet Header-Auth Name: Authorization and Value: Bearer FLOWSIE_API"
      },
      "typeVersion": 1
    },
    {
      "id": "214da305-e6d2-4a1b-9ebf-572f122ba219",
      "name": "스티커 노트2",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        20,
        -720
      ],
      "parameters": {
        "color": 6,
        "width": 800,
        "height": 540,
        "content": "### Customize n8n Chatbot\n\n```js\ncreateChat({\n\twebhookUrl: '',\n\twebhookConfig: {\n\t\tmethod: 'POST',\n\t\theaders: {}\n\t},\n\ttarget: '#n8n-chat',\n\tmode: 'window',\n\tchatInputKey: 'chatInput',\n\tchatSessionKey: 'sessionId',\n\tmetadata: {},\n\tshowWelcomeScreen: false,\n\tdefaultLanguage: 'en',\n\tinitialMessages: [\n\t\t'Hi there! 👋',\n\t\t'My name is Nathan. How can I assist you today?'\n\t],\n\ti18n: {\n\t\ten: {\n\t\t\ttitle: 'Hi there! 👋',\n\t\t\tsubtitle: \"Start a chat. We're here to help you 24/7.\",\n\t\t\tfooter: '',\n\t\t\tgetStarted: 'New Conversation',\n\t\t\tinputPlaceholder: 'Type your question..',\n\t\t},\n\t},\n});\n```"
      },
      "typeVersion": 1
    },
    {
      "id": "a31c4b87-43e4-4aa4-a5c3-8b84f7aab84f",
      "name": "스티커 노트3",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -560,
        -60
      ],
      "parameters": {
        "height": 220,
        "content": "Set FLOWISE_URL and FLOW_ID"
      },
      "typeVersion": 1
    },
    {
      "id": "14e6f14f-c7a8-4969-bc08-152c8f2f4b63",
      "name": "Flowise",
      "type": "n8n-nodes-base.httpRequest",
      "position": [
        -500,
        0
      ],
      "parameters": {
        "url": "https://FLOWISEURL/api/v1/prediction/FLOWISE_ID",
        "method": "POST",
        "options": {},
        "jsonBody": "={\n  \"question\": \"{{ $json.chatInput }}\"\n}",
        "sendBody": true,
        "sendHeaders": true,
        "specifyBody": "json",
        "authentication": "genericCredentialType",
        "genericAuthType": "httpHeaderAuth",
        "headerParameters": {
          "parameters": [
            {
              "name": "Content-Type",
              "value": "application/json"
            }
          ]
        }
      },
      "credentials": {
        "httpHeaderAuth": {
          "id": "OzvOPMztvvv1Duex",
          "name": "FLowise API"
        }
      },
      "typeVersion": 4.2
    }
  ],
  "active": false,
  "pinData": {},
  "settings": {
    "executionOrder": "v1"
  },
  "versionId": "054d4347-07c9-4c18-87e6-83fc08adeee9",
  "connections": {
    "14e6f14f-c7a8-4969-bc08-152c8f2f4b63": {
      "main": [
        [
          {
            "node": "cdd4781a-fb3a-492d-80a4-d75841dd458c",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "4eebb2dd-0879-4ee3-aa07-f5bc180f3afd": {
      "main": [
        [
          {
            "node": "14e6f14f-c7a8-4969-bc08-152c8f2f4b63",
            "type": "main",
            "index": 0
          }
        ]
      ]
    }
  }
}
